PS-3300 是 KORG 于 1977 年发布的巨大且极其罕见的半模块化模拟复调合成器的完全忠实的虚拟模拟仿真。樱桃音响 已竭尽全力准确地重新创建和更新这个神话般的怪物合成器，从其巨大的堆叠的声音特征和标志性的多谐振器扫频具有相当大的修补功能，使 PS-3300 与同时代所有其他复音合成器区分开来。
在日本…以及其他地方都很受欢迎
在发布其著名的 MS 单合成器系列之前，庆应义塾电子研究所（以 KORG 品牌名称）推出了 Polyphonic 系列模拟合成器。其中最大、最昂贵的是大型 PS-3300，这是一款 1977 年至 1981 年间生产的传奇合成器。它被广泛认为是有史以来最稀有的模拟合成器之一，生产了大约 50 台。凭借其半模块化设计、灵活的架构以及丰富的声音演变音色的倾向，PS-3300 通常被视为复调模拟合成器的圣杯。
PS-3300 独特的架构使其从当时少数可用的复音合成器中脱颖而出。它有三个独立的“信号发生器”面板，每个面板本质上都是一个完整的复调合成器。每个合成器面板都包含 12 个独立可调分频振荡器组以及每个音符的独立离散 VCF、包络发生器和 VCA。这使得外部键盘的所有 48 个键能够以独立的发音同时演奏。每个发生器的双 LFO 和三重电压可控谐振器进一步塑造了其标志性音色。专用的主面板配有一个混音器，三个语音面板均配有 VCA、采样和保持、一个额外的包络发生器和两个控制电压处理器。它还通过令人惊叹的 67 个前面板输入/输出插孔提供了广泛的调制可能性。总的来说，PS-3300 是如此强大和革命性，甚至连 Bob Moog 都印象深刻，称它是“最适合丰富声音的合成器”。
PS-3300 的高生产成本意味着只有最富有的音乐家才能买得起它，从而增加了它的稀有性和神秘感。其宽广而大胆的声音被描述为合成器管弦乐队，使其成为专业音乐家和收藏家备受追捧的乐器。几十年来，Vangelis、Jean-Michel Jarre、Aphex Twin、Kraftwerk、Klaus Schulze、Keith Emerson 和 Space 等开创性艺术家的采用进一步增强了它的受欢迎程度。Korg 于 1977 年以 7,500 美元的价格推出了 PS-3300，如今它变得如此稀有和令人垂涎，以至于 2021 年售价近 100,000 美元！
PS-3300 功能
对 Korg 于 1977 年发布的半模块化模拟复调合成器进行完全忠实的虚拟模拟仿真
三个独立的“信号发生器”面板，每个面板都有一个振荡器、低通滤波器、三峰谐振器、带力度的包络、放大器、两个调制发生器 LFO 和每音符调音：3X VCO，具有六种波形：三角波、锯齿波、矩形波
（方波）、两个预设脉冲波（具有不同的宽度）和 PWM（可变宽度脉冲）
3X 谐振 VCF 12 dB/oct 低通滤波器，可选择标准“干净”PS 滤波器或“更脆”的 MS-风格滤波器
3X 可调制“三重谐振器”：12 dB/oct 带通滤波器，用于产生元音和定相音调
3X 离散 ADSR 型包络调制器，具有速度控制和幅度调制功能
3X 两个可同步“调制发生器”(LFO)，带输出插孔：一个带三角波、锯齿波、斜坡、矩形、粉红噪声和白噪声，另一个带三角波形 3X 音律部分，带 12 个半音阶音符的单独调音旋钮
，等律、平均音系统、八调系统和纯音调的音律预设 将设置
从一个信号发生器面板复制/粘贴到另一个
复调模式，最多具有 24 种复调声音和三种单音模式：最后、低和高音符优先级
具有虚拟插孔和电缆系统的半模块化合成器，每个插孔具有无限的乘数和可定制（颜色、透明度、动画）电缆
主信号混合器面板，带采样和保持、通用包络发生器、和两个控制电压 (CV) 处理器
单独通道声像
用户可选择的弯曲范围和主调 录音
室质量的集成效果：合唱、同步回声以及三种类型的混响（弹簧、板式和银河） 十几个类别的
超过 360 个专业设计的预设。其中包括基于原始 PS-3300 用户手册中的补丁表的额外 Legacy 基本预设集合、基于 3100 的滑音补丁和 432 Hz 平均律补丁，所有这些都是为了让您开始自己的声音设计冒险。
独立虚拟乐器和插件版本 适用
于所有控制的完整 MIDI 控制和 DAW 自动化，具有易于使用的 MIDI 学习和映射
Cherry Audio 流行的焦点放大功能，以及标准 UI 缩放和通过拖动调整大小
完整的文档可直接从仪器在线获取或以可下载的 PDF 格式提供
用户可调节的过采样控制
Team R2R | 2023.10.15 | 20.62 MB

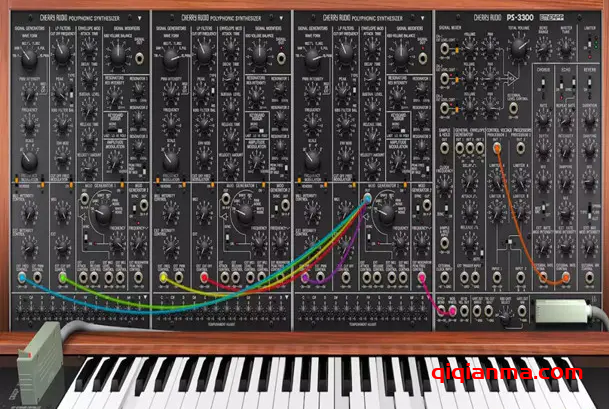

PS-3300 is an exactingly faithful virtual analog emulation of the colossal and ultra-rare semi-modular analog polyphonic synthesizer released by KORG in 1977. Cherry Audio has pulled out all the stops to accurately recreate and update this mythical monster synth, from its massive stacked sonic character and signature multiple‑resonator sweeps to the considerable patching capabilities that distinguished the PS-3300 from all other polysynths of the era.
Big in Japan… and everywhere else
Before releasing its renowned line of MS monosynths, Keio Electronic Laboratories (under the KORG brand name) introduced its Polyphonic Series of analog synthesizers. The largest and most expensive was the massive PS-3300, a legendary synthesizer produced between 1977 and 1981. It is widely considered one of the most rare analog synthesizers ever made, with around 50 units produced. With its semi-modular design, flexible architecture, and a propensity for rich, sonically evolving timbres, the PS-3300 is often regarded as the holy grail of polyphonic analog synths.
PS-3300’s unique architecture set it apart from the handful of polysynths available at the time. It had three independent “signal generator” panels, each essentially a complete polyphonic synthesizer. Each of these synth panels included 12 independently tunable divide-down oscillator banks as well as independent discrete VCFs, envelope generators, and VCAs for every note. This enabled all 48 keys of the external keyboard to be simultaneously played with independent articulation. Dual LFOs and triple voltage‑controllable resonators for each generator further shaped its signature tone. A dedicated master panel featured a mixer with VCAs for each of the three voice panels, sample & hold, an additional envelope generator, and two control voltage processors. It also delivered extensive modulation possibilities through an astounding 67 front-panel input/output jacks. Taken as a whole, the PS-3300 was so powerful and revolutionary that even Bob Moog was impressed, stating that it was, “the best synthesizer for fat sounds.”
The PS-3300’s high production cost meant that only the wealthiest musicians could afford it, thus adding to its rarity and mystique. Its broad and bold sound, described as an orchestra of synthesizers, has made it a highly sought-after instrument by professional musicians and collectors alike. Its adoption by groundbreaking artists such as Vangelis, Jean-Michel Jarre, Aphex Twin, Kraftwerk, Klaus Schulze, Keith Emerson, and Space has further bolstered its popularity over the decades. Korg introduced the PS-3300 at $7,500 in 1977, and it is now so rare and coveted that one sold for nearly $100,000 in 2021!
PS-3300 Features
Exactingly faithful virtual analog emulation of the semi-modular analog polyphonic synthesizer released by Korg in 1977
Three independent “signal generator” panels, each with an oscillator, lowpass filter, three-peak resonators, envelope with velocity, amp, two mod generator LFOs, and per-note tuning:
3X VCOs with six waveforms: triangle, saw, rectangle (square), two preset pulse waves (with different widths), and PWM (variable-width pulse)
3X resonant VCF 12 dB/oct lowpass filters with the option to select between the standard “clean” PS filter or the “crunchier” MS-style filter
3X modulatable “triple resonators”: 12 dB/oct bandpass filters to produce vowel and phasing tones
3X discreet ADSR-type envelope modulators with velocity control, and amplitude modulation
3X two syncable “mod generators” (LFOs) with output jacks: one with triangle, saw, ramp, rectangle, pink noise, and white noise, and the other with triangle waveform
3X temperament section with individual tuning knobs for the 12 chromatic notes, and temperament presets for Equal Tempered, Mean Tone System, Hepatonal System, and Just Intonation
Copy/paste settings from one signal generator panel to another
Polyphonic mode with up to 24 voices of polyphony and three monophonic modes: last, low, and high note priority
Semi-modular synthesizer with virtual jack and cable system, featuring unlimited mults per jack and customizable (color, transparency, animation) cables
Master signal mixer panel with sample & hold, general envelope generator, and two control voltage (CV) processors
Individual channel panning
User-selectable bend range and master tune
Studio-quality integrated effects: chorus, echo with sync, and three types of reverb (spring, plate, and Galactic)
Over 360 professionally designed presets in a dozen categories. These include a bonus Legacy collection of basic presets based on the patch sheets in the original PS-3300 Owner’s Manual, a 3100-based Glissando patch, and a 432 Hz Equal Temperament patch, all to get your started in your own sound design adventures.
Standalone virtual instrument and plug-in versions
Complete MIDI control and DAW automation for all controls, with easy-to-use MIDI Learn and mapping
Cherry Audio’s popular Focus zoom-in feature, as well as standard UI zoom and resize via drag
Complete documentation available directly online from the instrument or in downloadable PDF format
User-adjustable oversampling control
